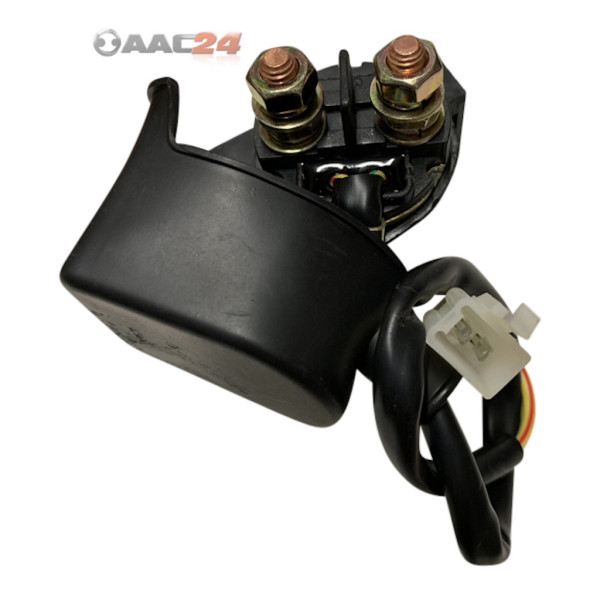

Starter Solenoid Relay for Tao Tao Bull 200S

Quick Start Every Time! – Starter Solenoid Relay for Tao Tao Bull 200S

Reliable Ignition – High-quality magnetic switch for starter motor control

Get your engine running without hesitation! This Starter Relay is the electrical link between your handlebar switch and the starter motor. It handles the high current needed to crank the engine. If your ATV only makes a "clicking" sound or doesn't react at all when pressing the start button, a faulty relay is a common cause. This part is designed for durability and consistent performance on 200cc class ATVs.

Technical Specifications & Details

• Component: Starter Relay / Solenoid.

• Voltage: 12V.

• Connector: 2-pin plug plus two main screw terminals.

• Compatibility: Tao Tao Bull 200S, Rhino 250, and various 150cc–250cc Chinese Quads.

• Benefit: Includes rubber mounting bracket for vibration protection.

Installation & Maintenance Instructions: (For guidance purposes only)

• Visual Check: Before installation, perform a visual check. Match the plug type and terminal positions with your original unit.

• Safety: Always disconnect the battery (negative terminal) before working on the electrical system to prevent accidental shorts.

• Connection: Ensure the main power nuts are tightened securely. Loose connections are a primary cause of relay failure.
