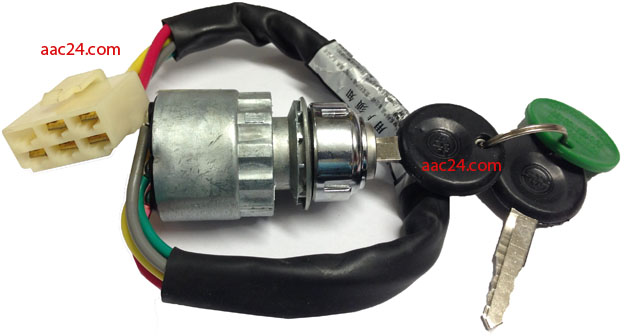

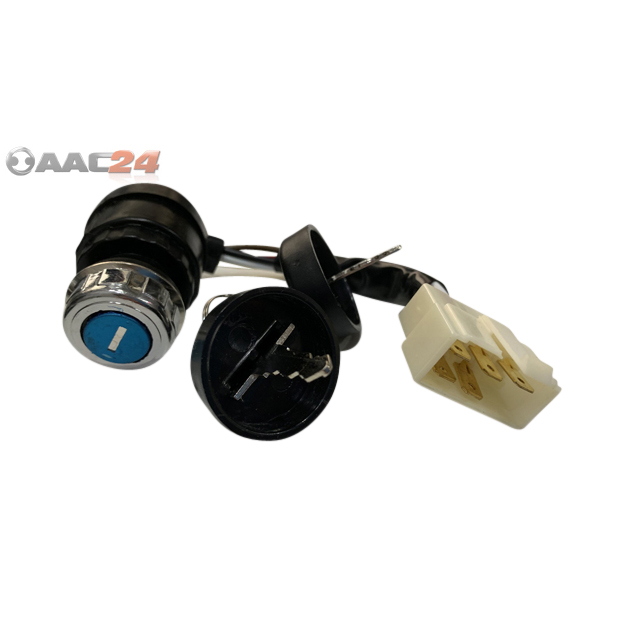

Product information "Ignition Switch Set for Campell DF4 650"
Secure Start, Reliable Protection! – Ignition Switch Set for Campell DF4 650
ATV Security – Precision ignition lock with 5-pin connector
Protect your vehicle from unauthorized use! This high-quality Ignition Switch is a direct replacement for the Campell DF4 650 series. The set includes two keys and features a standard 5-pin plug for easy installation into your existing wiring harness. Because different versions of this ATV may use varying lock housings, comparing the dimensions is crucial for a perfect fit.
Technical Specifications & Details
Component: Ignition Lock with 2 Keys.
Connector: 5-Pin Plug.
Dimensions: * Top cylinder diameter: 29 mm.
Face ring diameter: 35 mm.
Bottom housing diameter: 39 mm.
Compatibility: Campell DF4 650 and similar Chinese-manufactured ATVs.
Benefit: Durable switch contacts designed for off-road reliability.
Visual Check: Before installation, perform a visual check. Carefully measure the diameters (29mm/35mm/39mm) of your current lock housing to ensure compatibility.
Battery Safety: Always disconnect the negative battery terminal before working on the electrical system to prevent short circuits.
Lock Care: Use a dedicated lock cylinder lubricant occasionally to prevent sticking caused by dust or moisture.
