Cylinder Set 72.5mm Linhai ATV LH300ATV-3D Jinling Racing ATV 300 JLA 931E

Restore Peak Compression & Displace Fear! – Genuine 72.5mm Cylinder Set for Linhai LH300ATV-3D & Jinling Racing ATV 300 JLA-931E

Complete Premium Cylinder Kit – Factory OEM replacement including piston, rings, pin, and clips

Bring your engine's original punch and reliability back to the trails! This Genuine 72.5mm Cylinder Set is a high-grade, comprehensive top-end rebuild kit engineered specifically for the liquid-cooled 300cc single-cylinder motor utilized in Linhai and Jinling platforms.

The cylinder barrel features a highly durable, wear-resistant liner engineered for excellent thermal dissipation and minimal piston friction. This all-in-one kit includes the precision-honed cylinder, a perfectly matched piston, a full set of compression and oil scraper rings, the piston pin, and both retaining circlips. It serves as the ultimate drop-in remedy for severe loss of power, excessive blue exhaust smoke (oil burning), low compression, or following a critical engine seizure.

Technical Specifications & Details

• Component: Cylinder Barrel & Piston Rebuild Kit (Head and base gaskets sold separately).

• Bore Diameter: 72.5 mm (Standard OEM stock size).

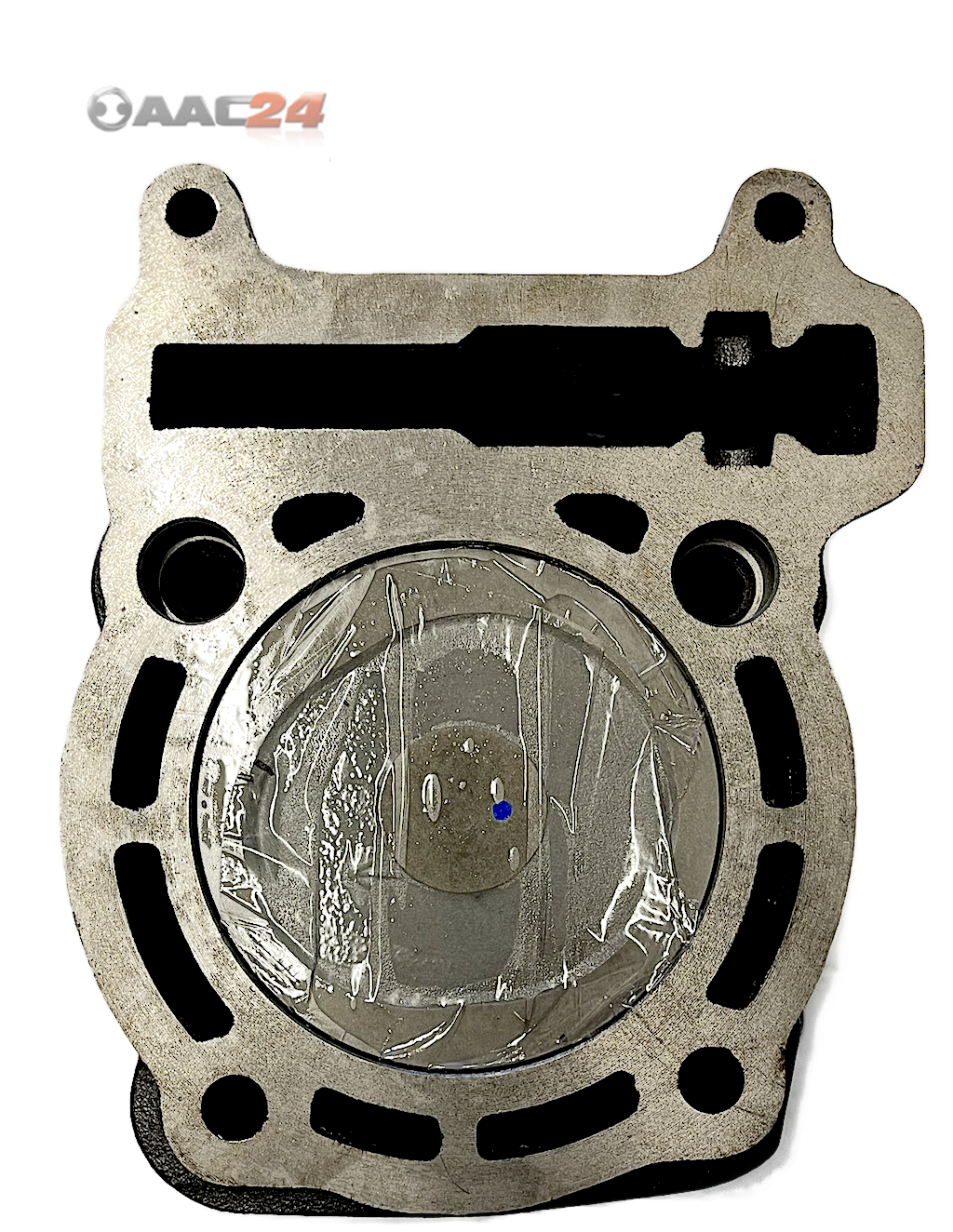

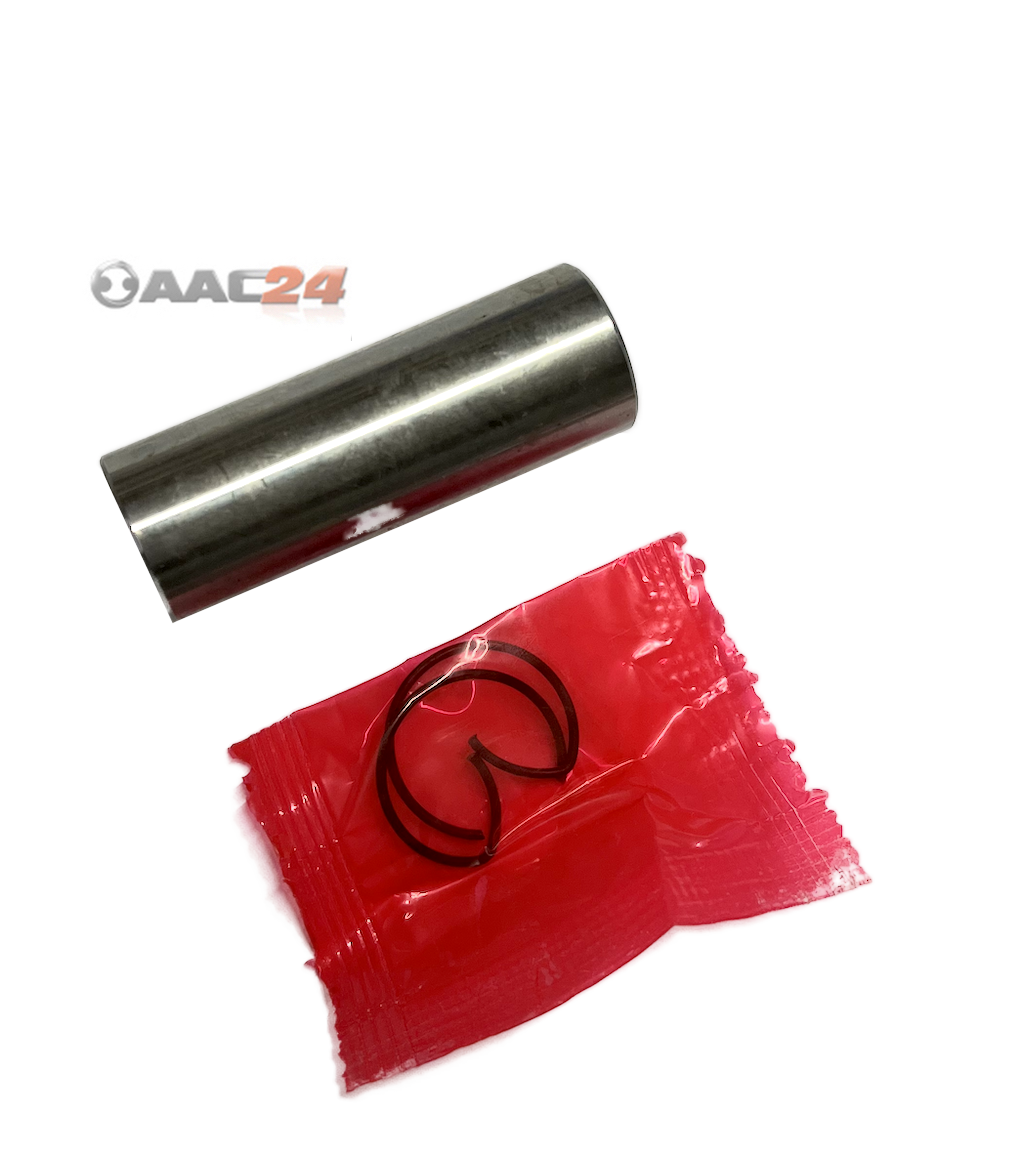

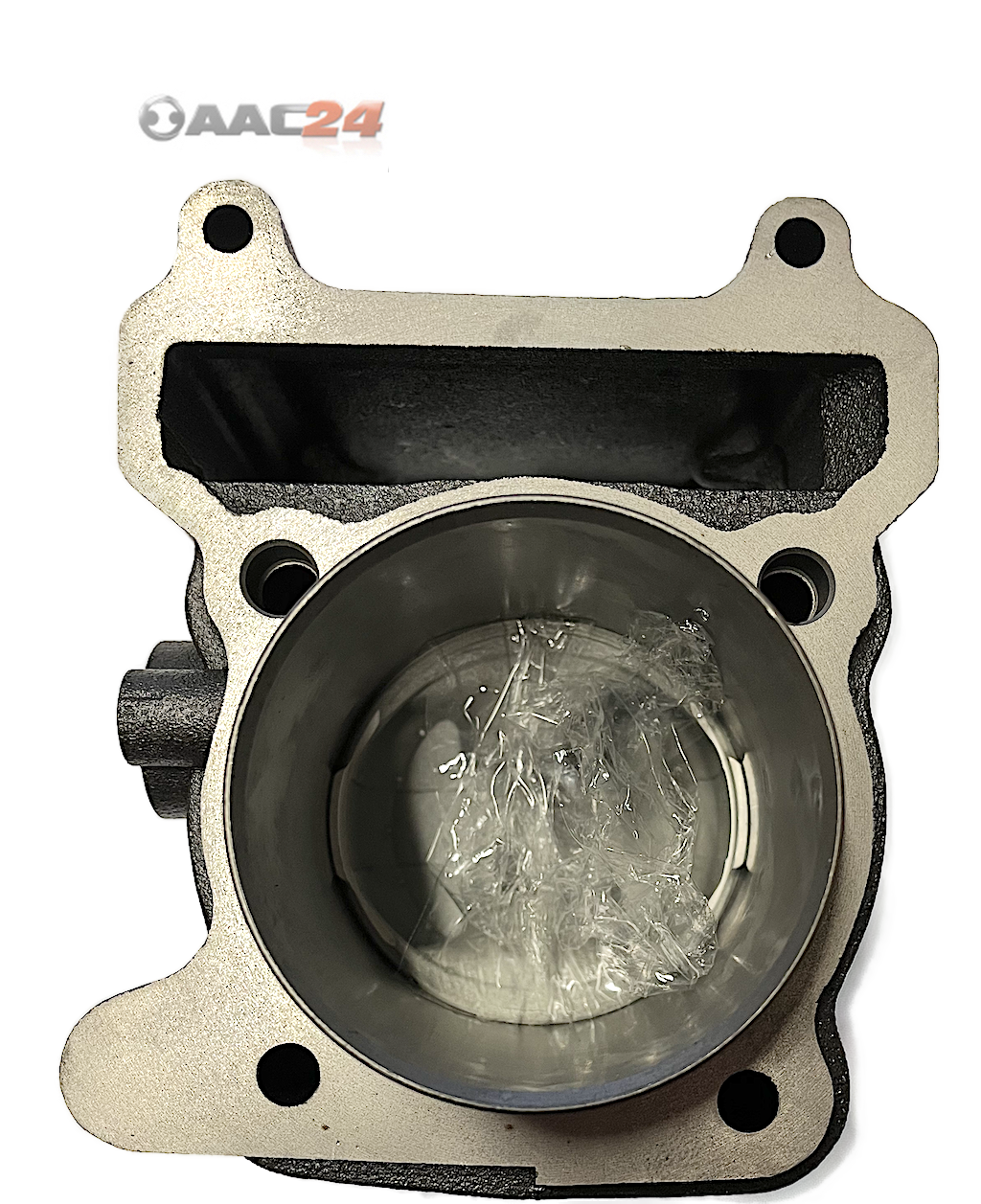

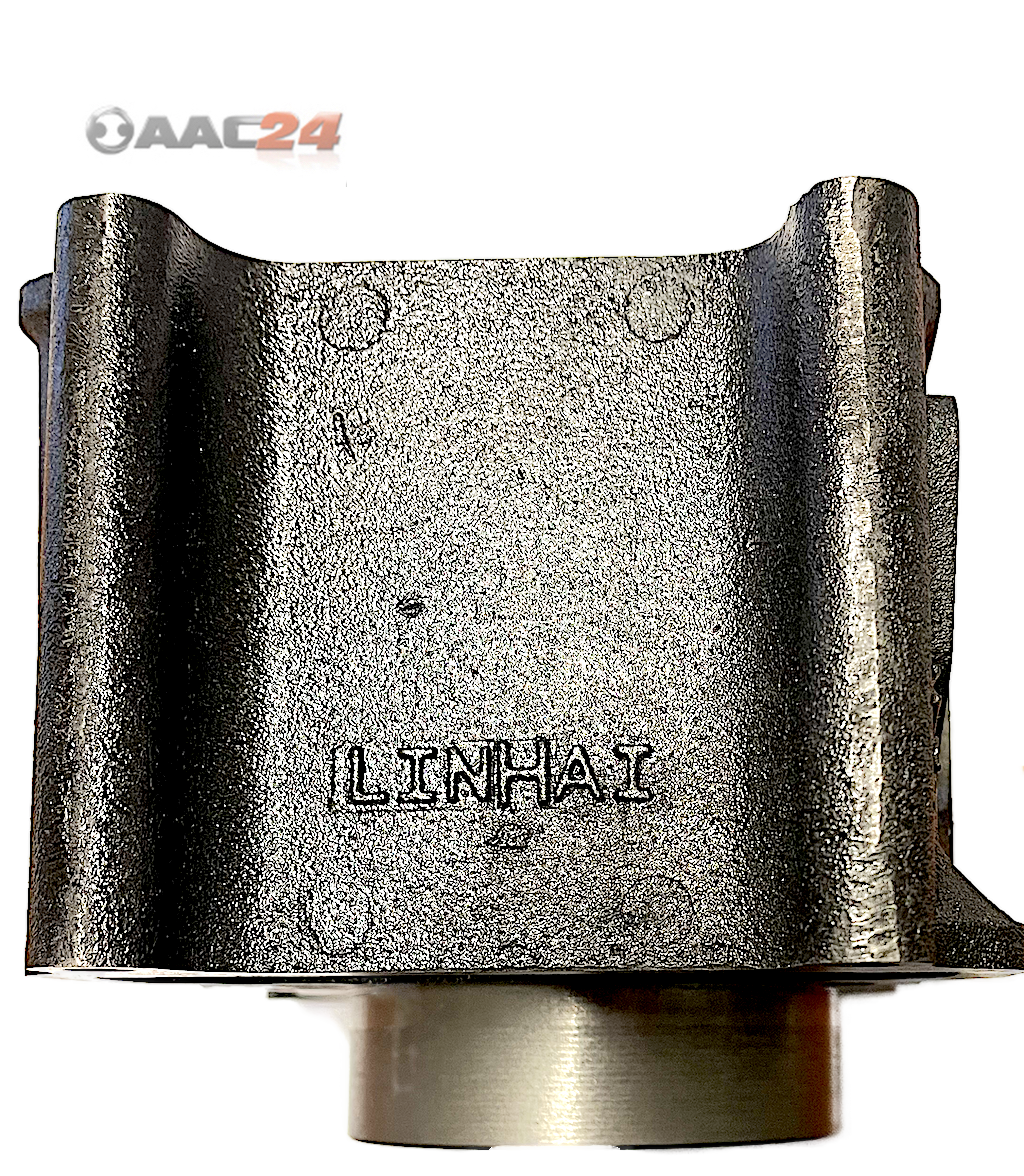

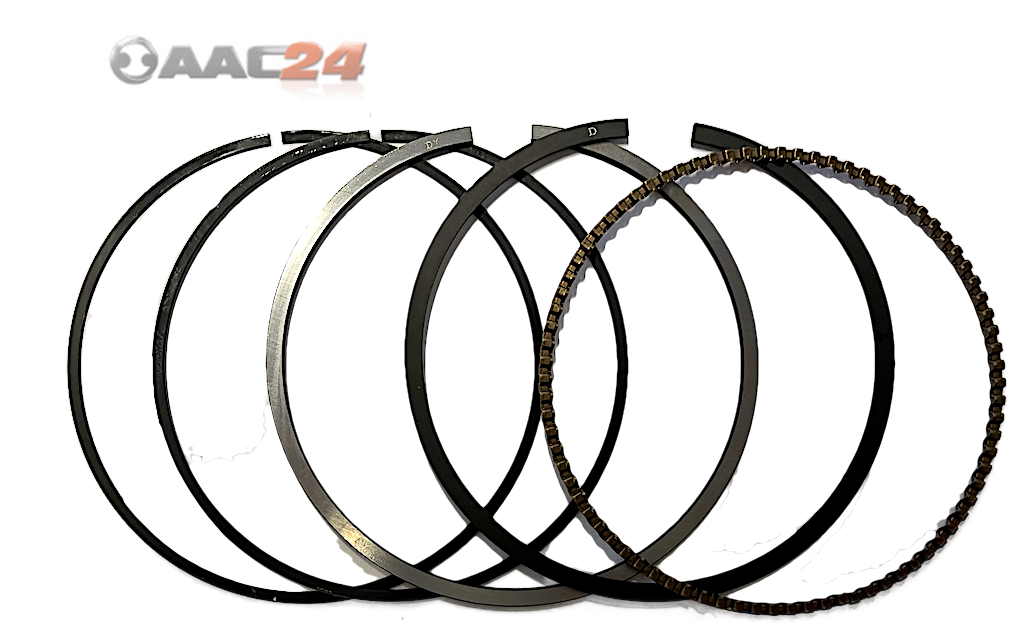

• Kit Includes: 1 x Cylinder block, 1 x Piston, 1 x Piston ring pack, 1 x Wrist pin, 2 x Circlips, 2 x Cylinder Joints

• Compatibility:

  • Linhai LH300ATV-3D / 300cc ATV series.

  • Jinling 300cc JLA-931E Racing ATV / Quad.

• Benefit: 100% genuine original equipment specification guarantees optimal oil control, precise factory tolerances, and standard engine longevity.

Installation & Maintenance Instructions: (For guidance purposes only)

• Visual Check: Before assembly, perform a visual check. Cross-examine the overall cylinder height, cylinder base stud layout, wrist pin diameter, and cooling jacket ports with your stock old parts.

• Keep Debris Out: Ensure the crankcase opening is completely covered with a clean rag while installing the piston and circlips. If a circlip accidentally springs free and drops into the crankcase, it will require a full bottom-end teardown to retrieve.

• Piston Orientation & Rings: Look closely at the markings on top of the piston crown. An arrow typically points towards the exhaust port, while an "IN" stamp must face towards the intake (carburetor) side. Ensure all piston ring gaps are staggered around the piston according to factory service specs, and that any "Top" markings face upward towards the combustion chamber. Lubricate the cylinder wall heavily with fresh engine oil before sliding the cylinder down over the piston rings.
